Handheld USB Color Doppler Ultrasound Scanner 3.5Mhz 128 E 60-240mm Depth

60 mm 2 - 5 Mhz 128 E Handheld Pocket USB Color Doppler Ultrasound Scanner System

Technical Parameters:

Convex Probe:3.5Mhz /128 elements

System Software:android 0.4.1072-Statemed

Operation System:android system (windows system operational)

Language:EN/CN

Display Mode:B Mode

Element:128

Depth:60-240mm

Frame:1-4

Gray Map:1-8

Pseudo Color:0-8

Dynamic Range:45-80

Application:

Abdomen / Obstetrics / Gynecology / Urology / Small Parts / Vascular / Pediatrics / Musculoskeletal

Electrical Power:

Voltage: 5 V

Max Power: 0.25 W

Physical Specifications:

Packing size: 210mm×130mm×50mm

Packing weight: 400g

Cine/Image Memory

Cine Memory: 200 frame

Capture area: Image only / full screen

DICOM Connectivity

DICOM3.0 Storage

Image Storage

Storage Format: JPEG, MP4

General Performance:

Digital Beamformer Channels: 64 channels

Beam-former Frequency Range: 1~18 MHz

Imaging Performance:

Startup Time (Max): Avg. < 10 seconds

Preset Switching Time: Avg. < 1 second

Storage Time (Image to Disk): Avg. < 1 second

Technology:

Full field synthetic aperture imaging Tech

Multi-beam formation Tech

Speckle Reduction Tech

Phase-inverse Harmonic Imaging Tech

Duplex Synchronous Display

Directional Power Doppler

Imaging Parameters Preset

Transducers:

Probe: Convex Array Probe/ Linear Array Probe

Frequency Central 3.5 MHz (2.0MHZ to 5.0MHZ)

Central 7.5 MHz (5.0MHZ to 10.0MHZ)

Pitch: 0.78mm / 0. 5mm

Radius: 60mm, N/A

Elements: 80, 80

User Interface: Full touch-screen-based operating principles

B-Mode

Maps: 8

Gain: 0~100

TGC: 6 Sliders

Dynamic Range: 45~80dB

Depth: Max. 24cm

Chroma: 0~7

Grayscale Levels: 256

Frame Rate: Max.15 Hz

Persistence/ Frame Average: 1~4

Top/Bottom/Left/Right Reverse: Yes

Speckle Reduction: Yes

Harmonic imaging: Yes (linear probe)

Color Mode

Gain: 0~100

Color Maps: 1~12

Doppler Steer Angles: 7 Steps

Wall Filter: 1~4

Persistence/Frame Average: 1~5

PW Mode

Gain: -20~20

D Linear Velocity: L/M/H

Doppler Steer Angles: 5 Steps

Wall Filtering: 1~3

Correction Angle: 80°/-80°

Max PRF: 10kHz

Baseline Adjustment: -3~3

MEASUREMENTS SPECIFICATIONS:

Analysis Packages

Basic, Obstetrics, Urology

Basic Measurement

B-mode: Distance, Perimeter and Area (ellipse or track-based method), Volume

M-mode: Heart Rate, Time, Distance, Speed

PW-mode: Heart Rate, Velocity, S/D, PI, RI

portable color doppler ultrasound machine

doppler medical equipment

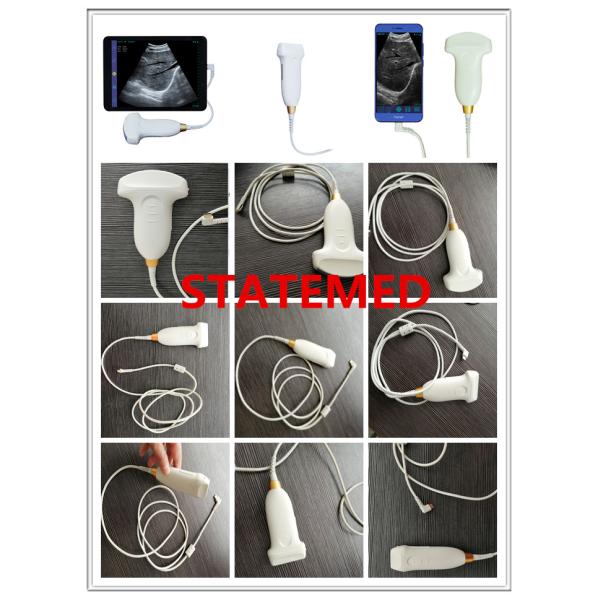

Handheld USB Color Doppler Ultrasound Scanner 3.5Mhz 128 E 60-240mm Depth Images
